T-REX 500 GF Kit Combo w/3 DS510 Servos (KX017004A-S)

Now includes 3 Free DS510 cyclic Servos!
Combo includes kit, motor, ESC and fiberglass blades

$ 389.99     Unavailable     Back

Quantity:


GF Frame Combo Version

Features:
1.Electric power system.
2.Simple and light weight design provides awesome flight performance and extreme 3D capability.
3.Rigid carbon fiber frame design.
4.Beautiful factory painted fiberglass canopy.
5.Rotor head/tail with thrust bearings.
6.Direct-to-swash CCPM linkage.
7.Center of gravity of Battery tray designed close to the rotor head.
8.Tail rotor drive belt system.
9.Fully driven tail auto rotation system.
10.Tail servo boom mount.

Specification:

Length:850mm
Height:310mm
Main Blade Length:425mm
Main Rotor Diameter:970mm
Tail Rotor Diameter:200mm
Motor Drive Gear:12T/13T
Main Drive Gear:162T
Autorotation Tail Drive Gear:145T
Tail Drive Gear:31T
Drive Gear Ratio:1:13.5:4.68/1:12.46:4.68
Weight(w/o power system):955g
Flying Weight:Approx 1700g

Accessories:

T-REX 500(GF) Kits SetX1 set

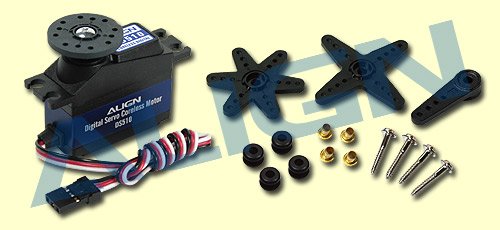

3 DS510 Servos (K10419A)
425 fiberglass bladesX1
RCE-BL60G 60A Brushless ESCX1 (Built-in 5-6V step-less adjustable BEC)
500L Brushless motor(1600KV)X1
Motor pinion gear 12TX1 and 13T X1

Radio transmitter and electronic equipment required for assembly:
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Head lock gyroX1
4.Specialized servoX1
5.Pitch gaugeX1
6.22.2V 6S Li-Po 2100~2500mAh batteryX1
